Tap Water Sources in Remote Locations with the 5” TurboDraft™ Unit
Access remote static water sources up to 250’ away
With Schutte & Koerting’s TurboDraft™ 5” Fire Eductor, you can tap into static water sources like ponds, streams, and swimming pools that are up to 250’ away while generating flows up to 670 GPM or more.
The 5″ TurboDraft™ unit is used primarily for accessing static water sources that are not easily reached using typical drafting techniques.
The 5″ unit can also be used…

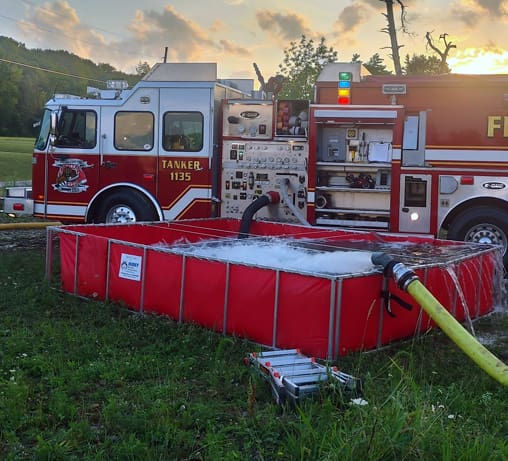

- To establish tanker/tender fill sites
- For dewatering of low lying areas
- For direct fire attack
- Fire ground water management
- When accessing shallow static water sources
And that’s only some of what your department can accomplish with the 5” TurboDraft™ fire eductor. For more, check out our TurboDraft™ demo videos.

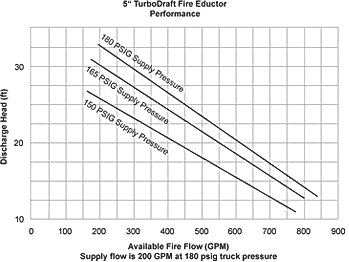

5” TurboDraft™ Unit Operation
Usable fire flow amounts will vary based on elevation and hose friction loss. Greater usable flow rates are achievable depending on hose friction loss coefficients or when utilizing 6” large diameter hose. Field testing should be conducted to confirm actual flow rates for each given hose configuration. (See Distant Water Source Situation table below for baseline numbers).

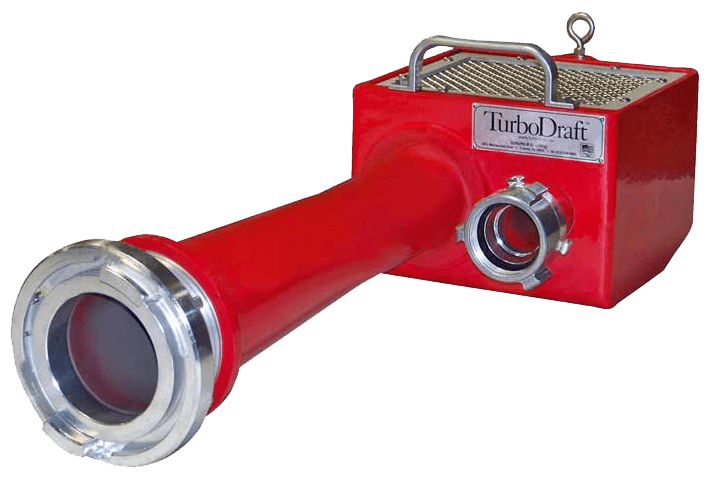

5” TurboDraft™ Unit Features

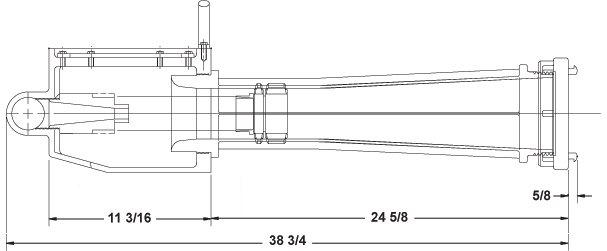

Overall Length: 39″
Weight: 47 lbs.
Connections: 2 1/2″ NST Female Inlet;
5″ Storz Male Outlet
Shipping Dimensions: 48″L x 16″W x 16″H
Shipping Weight: Domestic: 60 lbs.;
International: 100 lbs
| Distant Water Source Situation | |||
|---|---|---|---|
| Length of 5″ Hose | Lift | Pump Discharge Pressure | Base Line Fire Flow |
| 50′ | 10′ 20′ | 175 psig 175 psig | 670 gpm 470 gpm |
| 100′ | 10′ 20′ | 180 psig 180 psig | 570 gpm 400 gpm |
| 150′ | 10′ 20′ | 185 psig 185 psig | 480 gpm 325 gpm |
| 200′ | 10′ 20′ | 190 psig 190 psig | 440 gpm 280 gpm |
Is the 5” TurboDraft™ Fire Eductor Right for Your Department?
Find out! Talk to a distributor in your area today.
